B&W Bike Box, Blue ABS Hard case for Bicycles
B&W Bike Box, Blue ABS Hard case for Bicycles
B&W Bike Box, Blue ABS Hard case for Bicycles

Alternative Views:


This is the description above the pricing
MSRP: $380.00
Price: $349.99
Savings: $30.01



Description Technical Specs

bw international logo



store listings


ATTN: BLUE IS NO LONGER AVAILABLE, PLEASE BUY THE BLACK VERSION. Congratulations, you've found the most sold bike case in Europe. B&W is a German company that has been manufacturing quality hard cases for decades. You can read more about them on their homepage. All images can be enlarged by clicking them. Precision moulding and construction. Packing tips are included below.
open box


Product description:

material:
  • moulded 4.4mm ABS plastic outside shell
  • high density foam block for chain ring
  • two thick sheets of open cell foam inside.
  • PP-webbing security belt wraps around outside of case
dimensions:
  • 28.3" top, 44.5" bottom, 32.3" width and 11" deep (internal)
  • 72cm top, 113cm bottom, 82cm width and 28cm deep (internal)
weight:
  • 26 pounds (empty with mounting hardware)
specials:
  • Will fit any bike frame to 62 cm (not for downhill bikes) and even many of the Scott Plasma CR1 fixed seat tubes.
  • Includes 2 extra lightly padded wheel bag covers.
  • tie down straps on top and bottom side of case.
  • latches can be locked (not recommended since 9/11)
  • All hardware is mounted with screws and can be replaced by user.
  • Includes one extra set of wheels.
  • 4 wheels are uni-directional, so case can only be rolled in a straight line.
  • Moulded case is stackable and locks into each side.
  • Fits in smaller cars.
additional de-
sign features:
  • Comes packed in a retail box, 49x35x13”.
  • All handles and parts are fastended with screws by hand, so the user can make repairs with standard tools.
  • Ships with UPS as oversize 3 (90 lbs), due to volume.
  • easy to spot blue color!
  • Quick. 10 min. packing, 5 min. unpacking.
  • direct-to-consumer pricing
Warranty
  • Replacement for manufacturing defects within two years. This doesn't include normal wear and tear or damage from bagage handlers when travelling. You need to file an insurance claim with the carrier for this. We do stock replacement parts.




Here a sponsored professional from Whirlpool's road team ...
sponsored team Whirlpool
...but also for Mountainbikes
Close up pictures: | back to top |

includes 2 wheelguard bags
Each case includes two un-padded wheel guard bags. Extra wheel bags in different formats are available in our store.

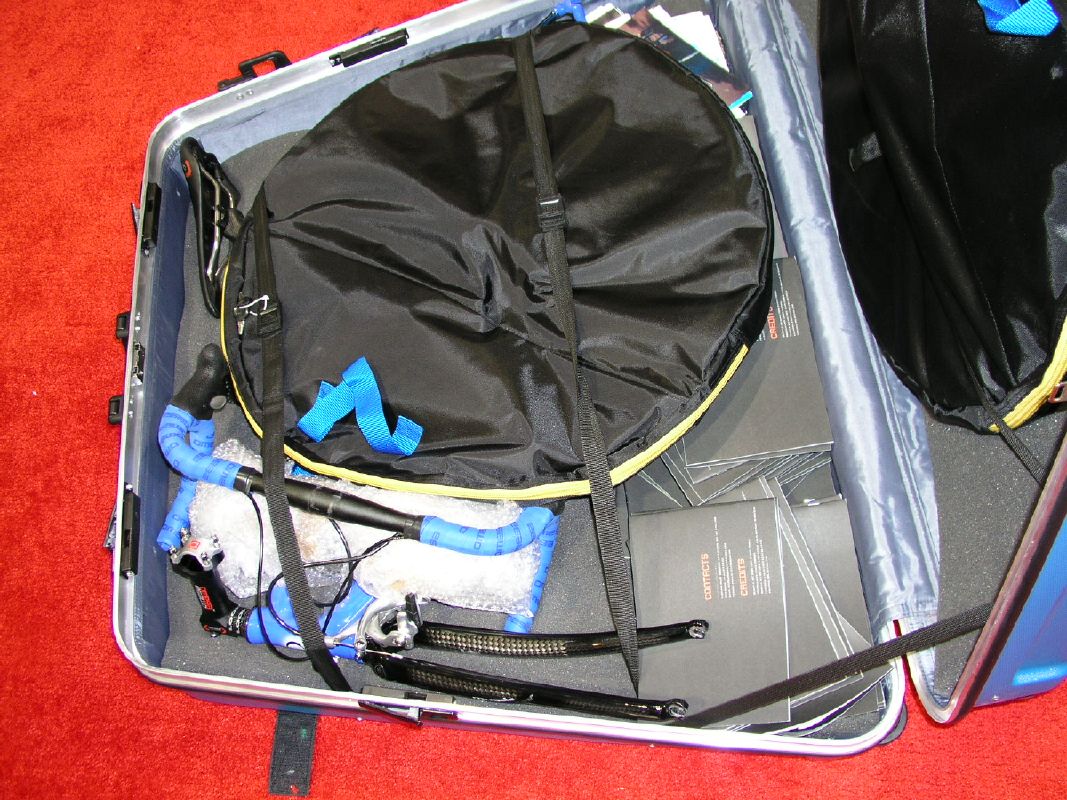

all packed up

A demonstration of how we pack our bike for travel (don't mind the brochures, they were from the Interbike show).



all packed up

Notice how the case stays partly open, due to limiting strap.

all packed up
You can see the pull handle on this side.
This is just a suggestion, one could take much more care in packing, but we were too worn out from the trade show.


Packing instructions: | back to top |

  1. Take the wheels out of the bike and remove the QR skewers.
  2. Store the wheels in the padded cover bags along with the skewers. Set them aside for now.
  3. Change the gears on the front so that the chain is on the small ring. The large chain ring will then 'dig in' and hold the hard foam block. Alternately use the optional chain cover bag and chain keeper to cover the rear drivetrain.
  4. Remove the handle bars from the stem by loosening the clamp bolts.
  5. Lay the bike on one sheet of foam with the chain ring toward the bottom. On larger frames, you may need to lower you saddle.
  6. Lay the handle bars next to the frame near the top of the box.
  7. Add any additional clothing, padding or other soft materials around the frame to give it extra protection.
  8. Lay the already packed rear wheel with the freewheel side toward the frame, so that it rests in a safe spot between the bike frame tubes. Use the adjustable straps to hold everything down.
  9. Put the remaining packed wheel on the other side of the box, so that the hub will not directly hit any part of the frame, when the box is closed. Use the straps to tighten the wheel in place.
  10. Close the two halves of the case, making sure things don't shift around. The two aluminum profiles should interlock completely around the case, then slide the four latches into the locked position.
  11. Tighten the velcro strap under the top handle and around the box for extra security.
  12. We recommend not locking the case, due to security checks in the baggage area. If you do lock the case, they may be forced to break the locks open.
  13. Don't forget to label your case with both your home and vacation address.
  14. Inspect your case for damage immediately after you arrive and make any insurance claims while you are still at the airport.

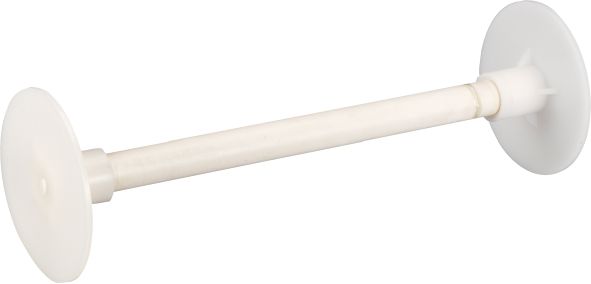

  15. case compression spacer compression saver can be purchase separately, if needed.

Additional accessories which are not included, but can be purchased in our store:

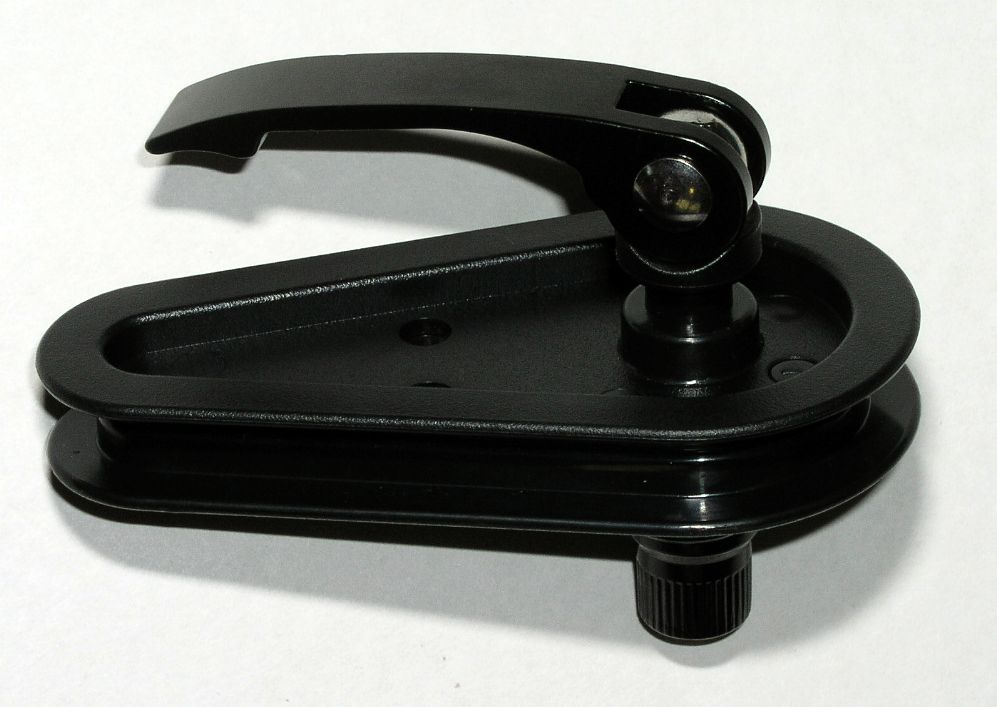

chain keeper sidechain keeper
You can find these "keepers" in our online store or just add $7/each to your order.

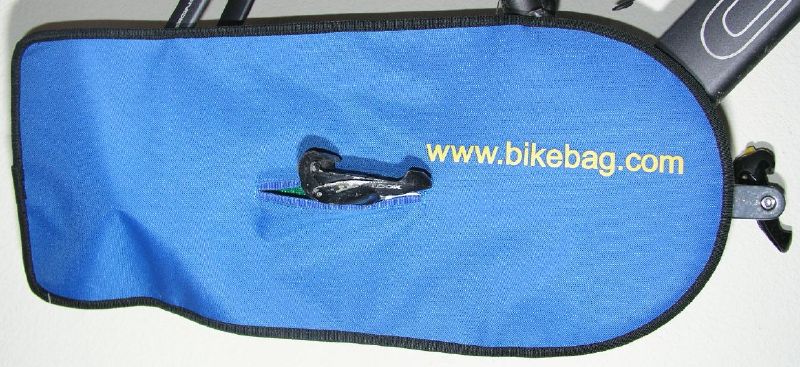

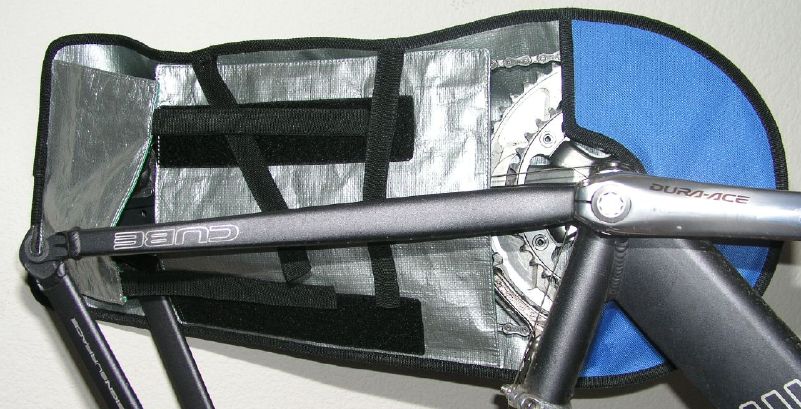

chain cover bagchain cover bagYou can find this chain cover bag in our online store or just add $6/each to your order.



Be the first to write a review »
